Preliminary results of strong ground motion simulation for the Lushan earthquake of 20 April 2013, China

1.   Introduction

The Apr 20, 2013 M7.0 earthquake struck the Lushan County of Sichuan Province of China and its surrounding areas (Fig. 1), causing heavy casualties and huge economic losses (Liu et al. 2013). It was reported that this earthquake, occurred at the southwest end of the Longmenshan fault zone, is a thrust faulting event, its epicenter was located in the eastern margin of the Tibetan Plateau, namely the intersection of the Tibetan Plateau and the Sichuan Basin, where geomorphic change is very significant. Therefore, the near field strong ground motion will be strongly affected by the rough topography, i.e., the topographic effect (Geli et al. 1988; Zhang et al. 2008). Shortly after the earthquake, Zhang et al. (2013) obtained the kinematic source model for this earthquake through the teleseismic data inversion. This kinematic source model will not only help us to understand the rupture process and physical mechanism, but also provide fundamental data for computing the strong ground motion and the hazards evaluation of this earthquake. In this study, we adopt the newly developed 3D seismic waves curved grids finite difference method (CG-FDM) which can effectively handle the rough topographic effect (Zhang and Chen 2006; Zhang et al. 2012) and the kinematic source models provided by Zhang et al. (2013) to simulate the strong ground motion, to calculate the corresponding intensity distribution map, and to assess and analyze the hazard distribution.

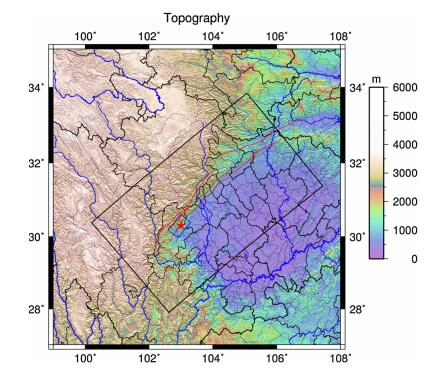

Figure  1.  The map of the region this work concerns. The black box depicts the computational region; the smaller blue box in the middle shows the surface projection of the rupture fault. The red pentagram represents the epicenter of an earthquake and the red lines are faults in Longmenshan fault zone

DownLoad: Full-Size Img PowerPoint

2.   Methodology and data

2.1   Numerical simulation method for 3D seismic waves

Earthquake damage is mainly caused by the strong ground motions formed in an earthquake at the free surface. Physically, the strong seismic ground motion is the response of seismic waves generated by a rupturing earthquake source. Therefore, if given the kinematic source model as well as the structural model, we can calculate the propagation of seismic waves and its resultant strong ground motion by solving the elastodynamic equations. Since the earthquake occurred at the region with significant topographic variation, the solver we adopted in this study must be able to handle such strong topographic effect. The numerical simulation method adopted in this paper is CG-FDM proposed by Zhang and Chen (2006; Zhang et al. 2012). According to the method, curvilinear grids would be generated first as per the arbitrary undulated surface, and then apply the Traction Image method (Zhang and Chen 2006) to handle the free surface condition, so that the method can adequately handle the topographic problem. More details about the method and its application in strong ground motion simulation can be found in Zhang et al.(2008, 2012), Zhang and Chen (2006).

2.2   Wave-speed model and topography data

In order to better simulate the effects of seismic waves propagation generated from the source on areas near the fault, especially on the Sichuan Basin, we select a 600 km × 400 km region to calculate. The calculating depth extends to 50 km deep. This area with an angle N 50°E (Fig. 1) is approximately parallel with the earthquake fault. In this study, we used a modified global crustal model, CRUST2.0 (Bassin et al. 2000) and a global sediment layer model (SED1.0) (Laske 1997), to approximate the 3D velocity model The topographic model we used in this study is the SRTM elevation data (Digital Elevation Model) with a accuracy of 90 m (Fig. 2) (Reuter et al. 2007) which is satisfied for our current simulation.

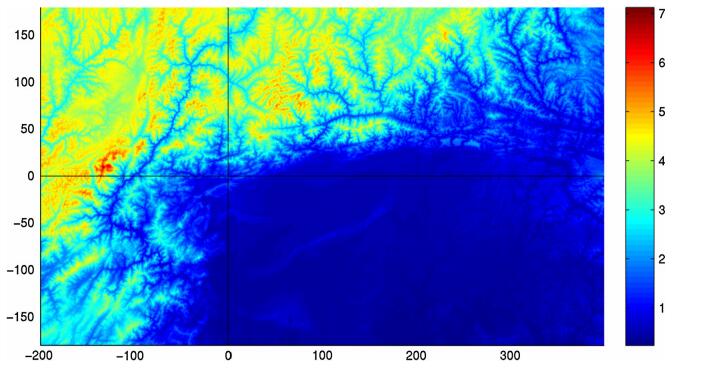

Figure  2.  The topography of computational space. Two black lines are the survey lines. The horizontal line located at y = 0 and the vertical line located at x = 0

DownLoad: Full-Size Img PowerPoint

2.3   Finite fault models

After the Lushan earthquake, Zhang et al. (2013) quickly inverted the rupture process using the teleseismic data from the global seismic network. Zhang et al.'s models show that the earthquake fault is 63 km in length and 48 km along the dip, strike angle 219°, dip angle 33°, earthquake moment is about 1.69 × 10¹⁹ N m, the maximum slip 1.6 m, and focal depth 12.3 km. This finite fault model shows that the earthquake is thrust rupture, and the obvious rupture directivity and surface rupture is not obvious. In addition, this finite fault model not only give the final slip distribution on the fault plane, but also give the kinematic fault rupture process, i.e., the slip velocity distribution in time and space domain on the fault plane. In this study, we will stimulate the strong ground motion caused by Lushan earthquake based on this finite fault model.

3.   Simulated strong ground motion

The computational domain is discretized with 1, 200 × 900 × 180 grids. The spatial grid size is average 500 m, time step is 0.013 s and the shortest wavelength is 1, 200 m, the highest cutoff frequency is 1.0 Hz, the theoretical calculating seismograms time window is 130 s. To deal with irregular surface, we adopt boundary-conforming curvilinear grid to discretize the computational domain. To ensure accuracy of simulation of seismic waves, the grids near the free surface are condensed, i.e., the vertical space step near the surface is 200 m. Based on the velocity model described above, using the CG-FDM, we simulated the seismic waves with the kinematic source modes provided by Zhang et al. (2013), and the results are shown in Figs. 3, 4, 5, 6, and 7.

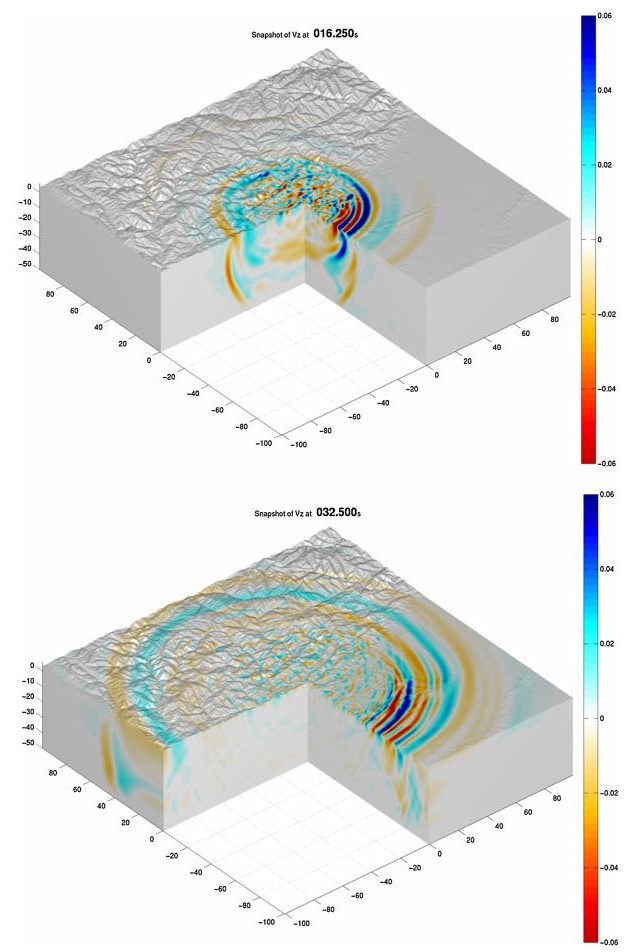

Figure  3.  The snapshots of the vertical component of particle velocity. The time when the snapshot takes is labeled on the top of figures

DownLoad: Full-Size Img PowerPoint

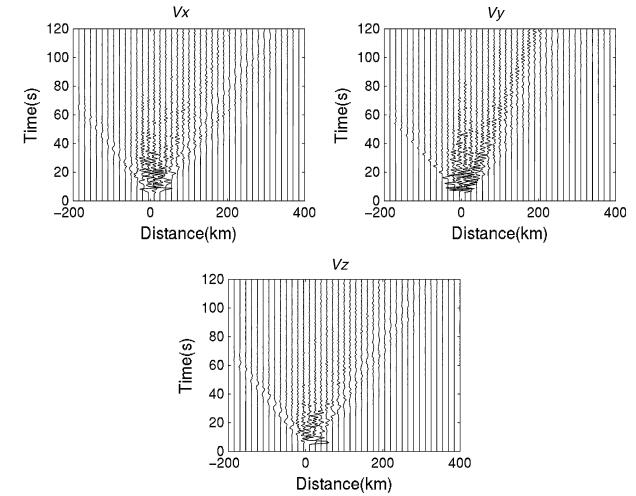

Figure  4.  The synthetical seismograms (three components) in the horizontal survey line of Fig. 2

DownLoad: Full-Size Img PowerPoint

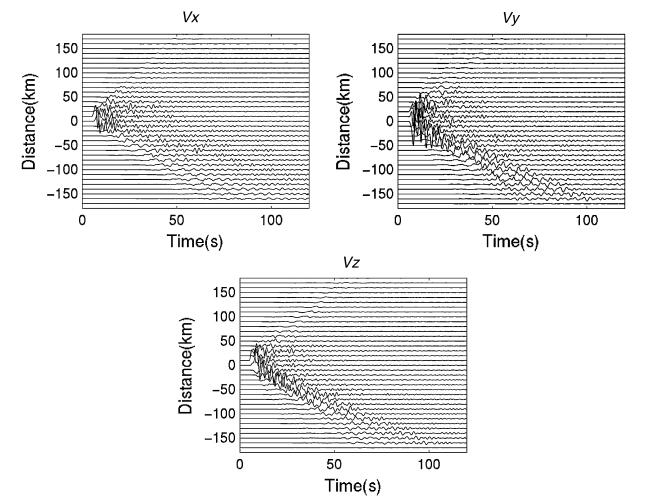

Figure  5.  The synthetical seismograms (three components) in the vertical survey line of Fig. 2

DownLoad: Full-Size Img PowerPoint

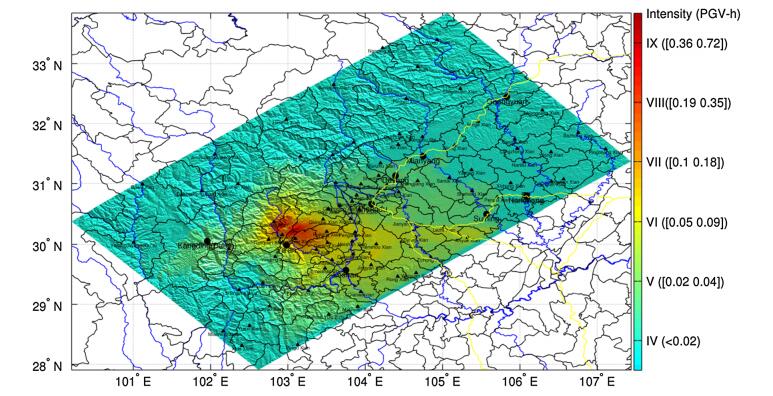

Figure  6.  The predicted seismic intensity map, the color scale shows the level of seismic intensity and the corresponding range of horizontal PGV

DownLoad: Full-Size Img PowerPoint

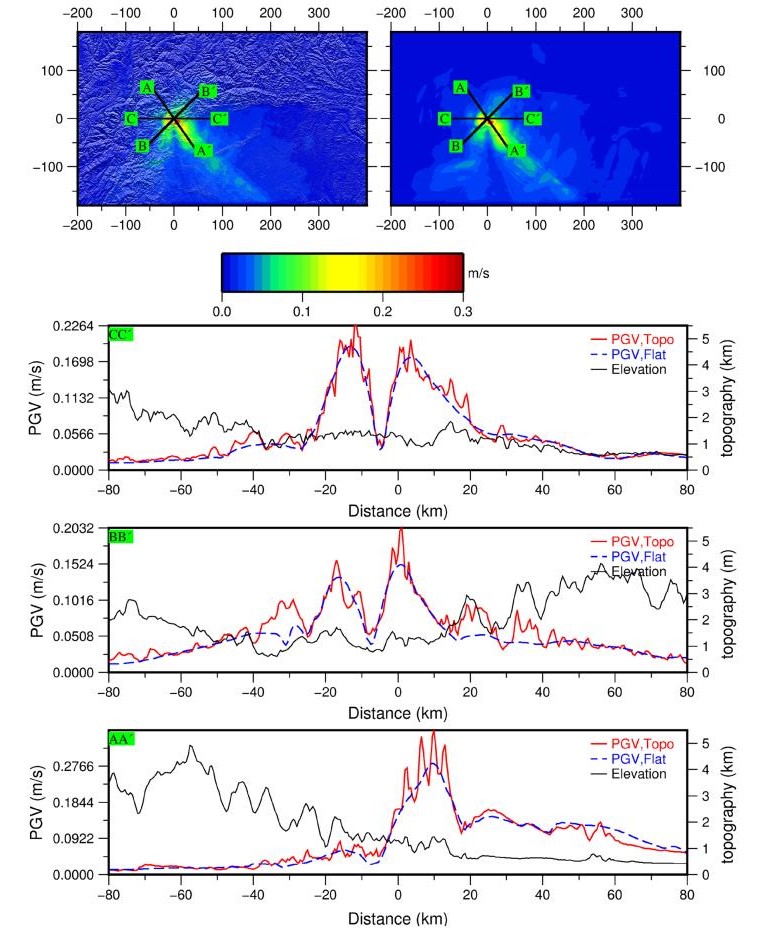

Figure  7.  The comparison of the PGV with real topography surface model (top, left) and the PGV with the flat surface model (top, right). Three profiles selected in the following comparisons are represented by solid lines. For the detail comparisons (see the text), PGV from simulations with real topography and with flat surface are illustrated by red solid line and blue dashed line separately. The elevation is plotted by black line

DownLoad: Full-Size Img PowerPoint

3.1   The simulated wave-field and seismograms

The simulated wave-fields are showed in Fig. 3. The results show strong amplifications of seismic waves in the basin area as well as in some small localized patches in the fault area. The former amplification in basin area is due to the reverberation effect of seismic waves in the thick low-velocity basin, the later amplifications in the small localized patches in the epicentral mountain area are due to the topographic effects also observed in the 2008 Wenchuan earthquake (Zhang et al. 2008). The main radiated seismic energy of Lushan earthquake propagates mainly toward the East with slightly South direction. Figures 4 and 5 show the calculated seismograms at the two survey lines (y = 0 and x = 0) on the ground surface. It can be seen from the results that in the survey line y = 0 the amplitudes of seismic waves in side of x > 0 are apparently larger than those of x < 0, while the amplitudes of seismic waves in side of y < 0 is larger than those of y > 0. This is due to the amplification effects of Sichuan basin.

3.2   Peak ground velocity and seismic intensity map

Figure 6 shows the intensity maps which made by the PGV distributions as per the Chinese intensity scale (Chen et al. 1999). The maps show that the maximum intensity is Ⅸ degree. The Ⅸ degree region is not only located in the near-fault zone but also in some crests which located in the border region of Baoxing county and Lushan county as showed in Fig. 7. The Ⅸ degree zones include the projection area of the ruptured fault (hanging wall effect), and some mountain ridges in the border zone of Baoxing county and Lushan county due to the topographic effects. The relatively broad basin region with intensity Ⅶ-Ⅷ degree is due to the basin amplification effects.

4.   Discussion and conclusions

To assess the topography effects, we will compare the distribution of PGV between the model with real topography surface and with flat surface. In the case of flat surface, we set the topography elevation to the mean elevation to make the paths of wave propagation be nearly the same to the case with real topography. The comparison of PGV in the fault-parallel component between the case of model with real topography surface (left) and model with flat surface (right) could be found in Fig. 7. The same color scale is chose to make the comparison more clear.

We select three profiles (AA′, BB′, CC′) to explain the effect of topography on strong ground motion and the profiles are all across the epicenter. The comparison of three profiles is plotted separately in Fig. 7. In each comparison, the red line implies the PGV of real topography, and the blue dotted line implies the PGV of flat surface model. The elevations are implied in the black lines. From the Fig. 7, we find four characteristics: (1) the PGV with the flat surface is smoothly distribution, in contrast, the PGV of real topography surface model is modulated by surface topography; (2) the PGV with the flat surface model is smaller than the PGV with the surface topography because of the topography amplification effects; (3) the PGV values of real topography surface model is modulated by surface topography, in other words, the PGV on the peaks of the mountain ranges is larger than the PGV in the valleys; (4) the features of the topography effects is more obvious on the mountain ranges above the fault zone than those in the mountain ranges far away from the fault zone.

Based on the kinematic source models provided by Zhang et al. (2013), we simulate the strong ground motion of Lushan earthquake by using the CG-FDM (Zhang and Chen 2006; Zhang et al. 2012) with the SRTM digital topographic model and the Crust2.0 and SED1.0 velocity model, and obtain the seismic intensity map. Our results show that, the main seismic energy of Lushan earthquake concentrated on fault zone area and the Sichuan Basin, and the corresponding seismic intensities reach up to Ⅸ degree. It is noticed that the seismic intensity in the border zone of Baoxing country and Lushan country also is also up to Ⅸ degree, reflecting a strong near field topographic effect. Such topographic effect was also observed in the strong ground motion simulation of the Wenchuan earthquake (Zhang et al. 2008).
